Welcome to Dryden Engineering

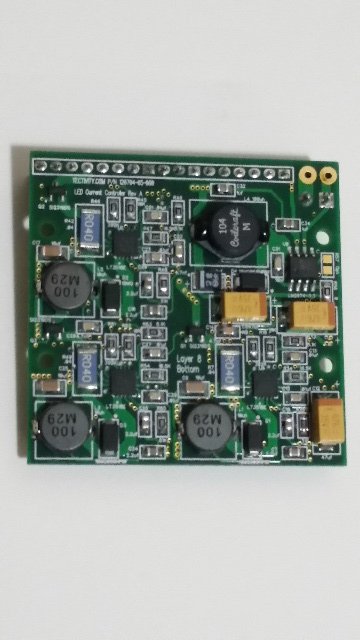

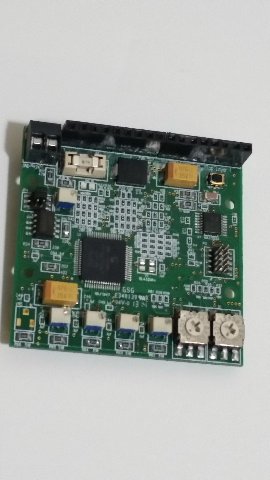

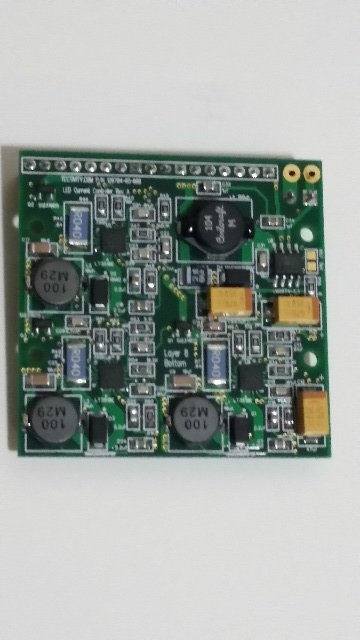

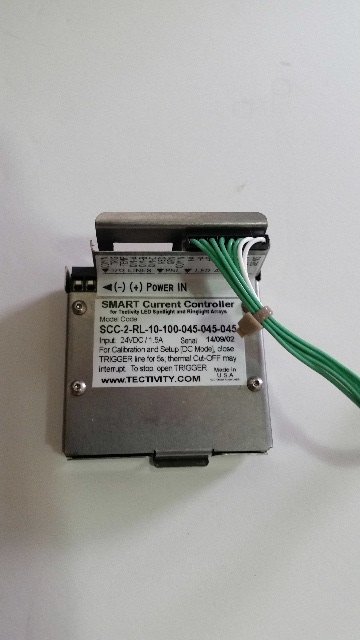

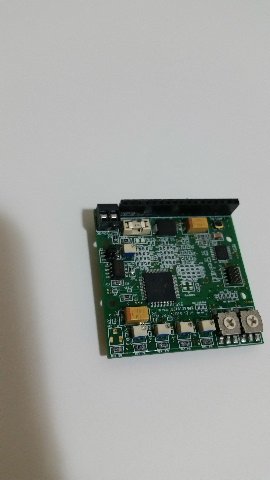

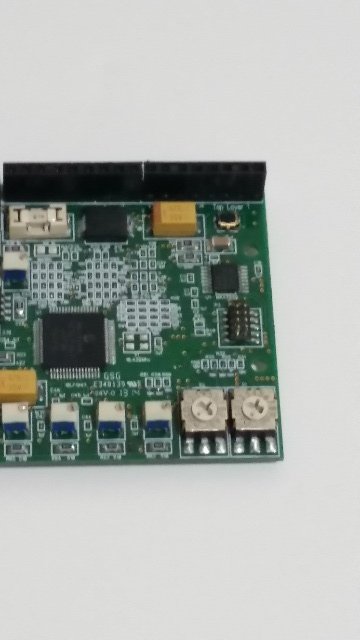

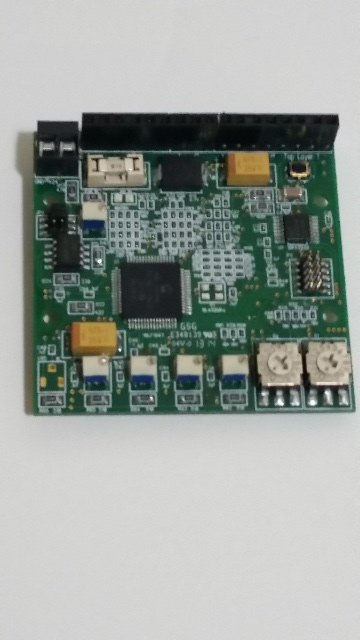

Tectivity had me design a 3 channel LED controller.
Each channel had 2.3 amp of drive capability.
You can adjust each channels current from 0 to 2.3 amps.
The LED controller is used for a flash for machine vision systems.

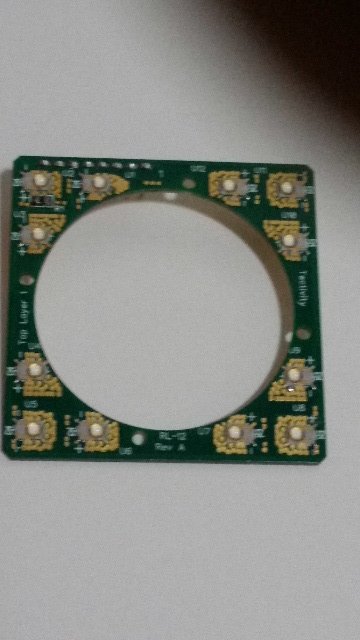

There was also 3 LED boards that can be used with the LED controller for different applications.
Back to Dryden Engineering Main Home Page.
Manual for test fixture setup. Rev F.
Setup instructions for Controller for Tectivity.
